Nanocrystalline cores for EMC Common Mode choke series

Nanocrystalline cores for EMC Common Mode choke  series
Product name:Nanocrystalline cores for EMC Common Mode choke series
Item:251
Details:





Note:Welcome other specification and Customer required dimension is available

Feature:
High of Bs, high values ​​of u, having a high resistance saturation capacity, inductance can
effectively reduce the size, shown as a common mode inductor core static hysteresis loop 1;

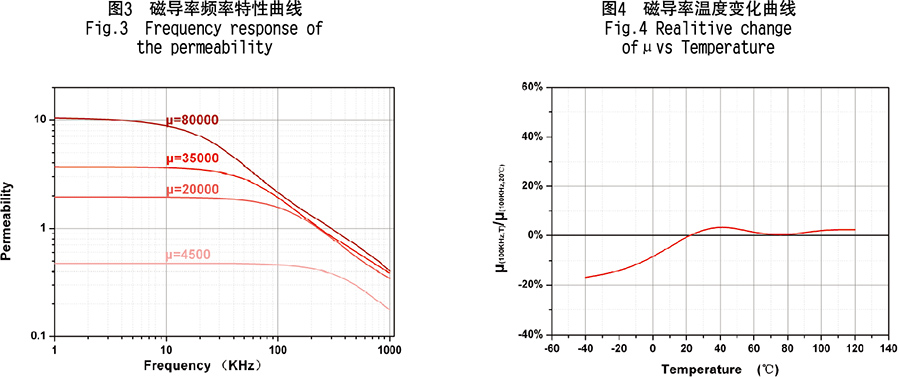

· Excellent frequency characteristics, as shown in Figure 3 the core permeability versus frequency curve;
Stable temperature characteristics of the core magnetic permeability change with temperature
change curve shown in Figure 4;
Small magnetostrictive coefficient, low noise;
