Nanocrystalline Core Applied As:
1, Solid Current Transformers Cores;
2, Split Current Transformer Cores;/
3, Residual Current Circuit Breaker ( RCCB) Cores;
Properties:
|
Saturate induction
|
1.25T
|
Hardness Hv
|
880kg/mm2
|
|
Curie Temperature
|
560°C
|
Density
|
7.20g/cm3
|
|
Crystallization Temperature
|
510°C
|
Resistivity
|
80mW-cm
|
|
Saturate magnetostriction
|
2x10-6
|
|
|

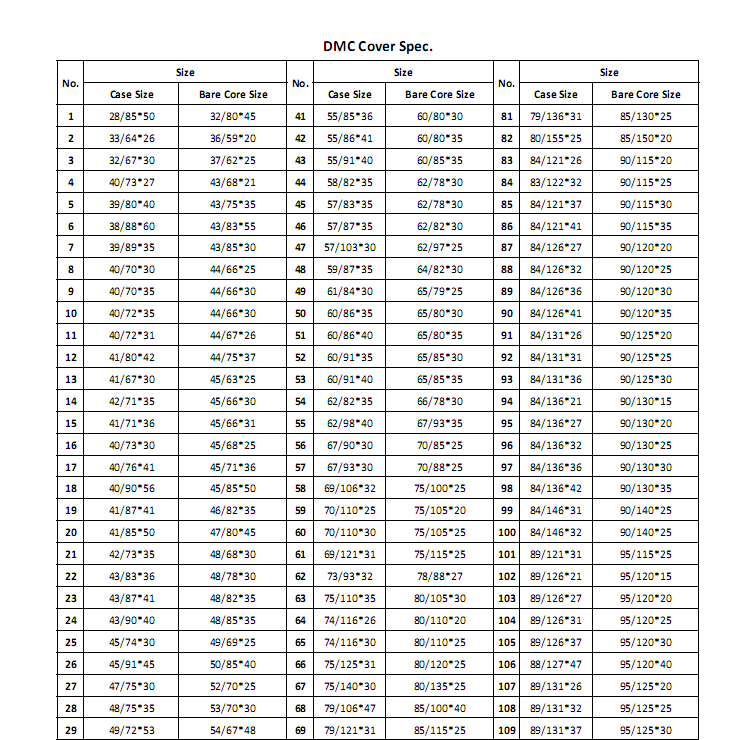

Nanocrystalline Toroidal Core with Plastic(DMC) Case:
 |
|
|
|
* Cores with other specifications can be provided concerning to customer demand.
|
|
Class of Accuracy:
0.5, 0.5S, 0.2, 0.2S, 0.1, 0.05, 0.02, 0.01
Rated Voltage:
0.5, 10, 15, 20, 35, 60, 110, 220, 330, 500kV
Soft magnetic component
