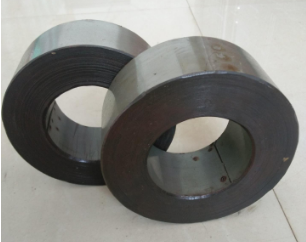

Iron Toroid Electric Current Transformer(Nanocrystalline) core

Iron Toroid Electric Current Transformer(Nanocrystalline) core
Product name:Iron Toroid Electric Current Transformer(Nanocrystalline) core
Item:257
Details:
 Introduce:
Nano-crystalline Current Transformer Cores for Power Supply Use

It is well known that the higher CT core permeability, the lower measurement error & higher measurement
accuracy. The silicon steel CT core can't get enough measurement accuracy under the situation of low
Ampere-tums or small turn ratios. And the Fe-Ni Permalloy core's application are limited because of their
low magnetization and high cost. Nano-crystalline cores are getting wider usage for the 0.2,
0.2s, 0.1 accuracy grade precious current transformers because of its high permeability, high magnetization
and lower cosl in Ihc field of power supply systems, power energy measurement and controlling systems,
dynamical system, relay protection, etc.

• High permeability—Increase CT's accuracy level.

• High magnetization—Decrease CT meters security factor

• Excellent cost performance—lighter weight, smaller volume.

• Good temperature stability—Keep stable from-55C to 13CC for long time.

Application:
Nano-crystalline cores are getting wider usage for the 0.2,0.2s, 0.1 accuracy grade precious current
transformers because of its high permeability, high magnetization and lower cosl in Ihc field of power
supply systems, power energy measurement and controlling systems, dynamical system, relay protection, etc.

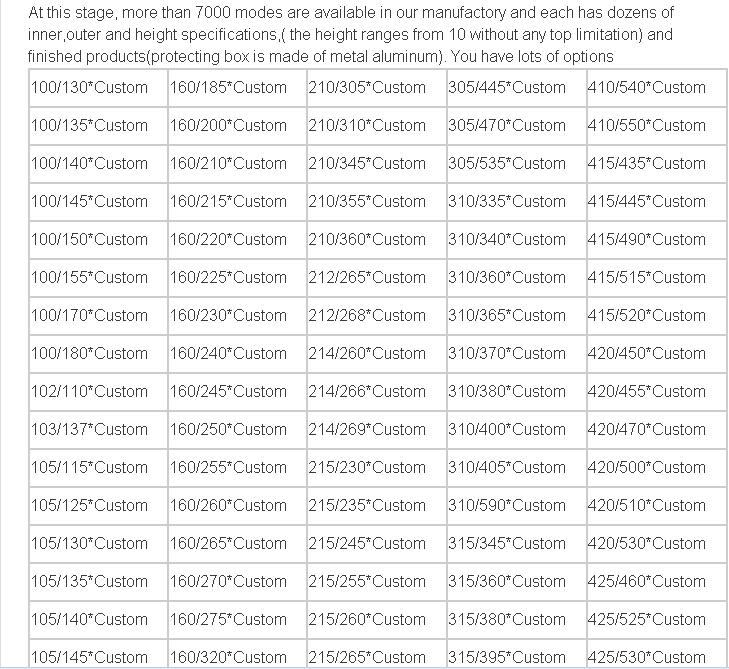

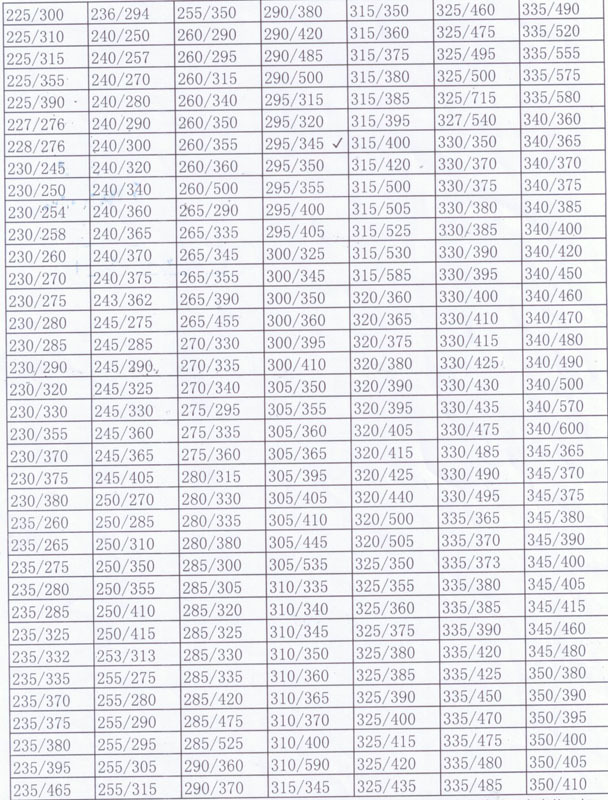

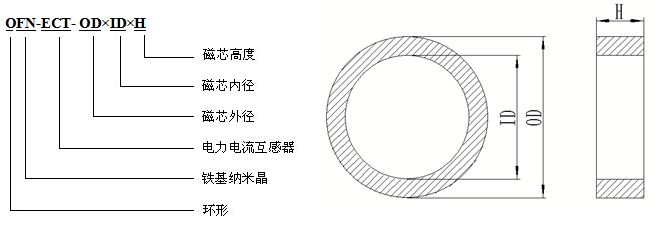

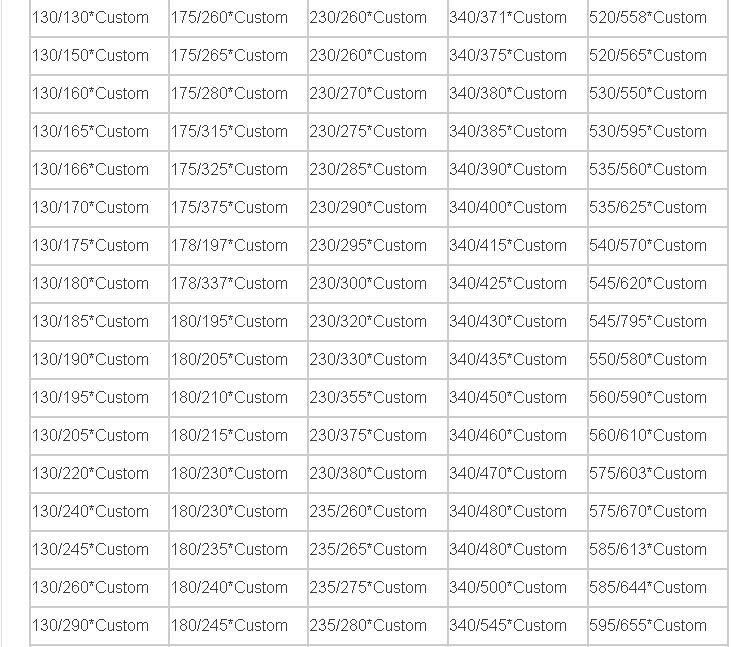

Product Specification:

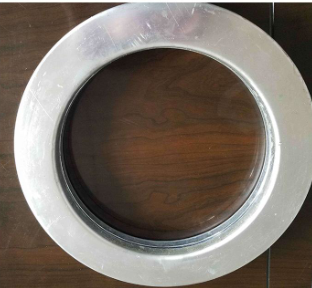

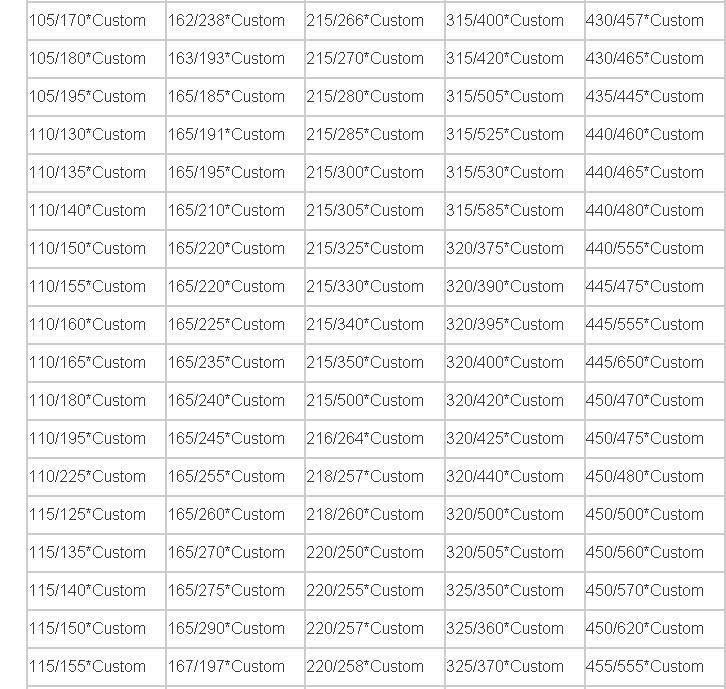

Nanocrystalline core for current transformer(AL and Stainless Steel Cases):

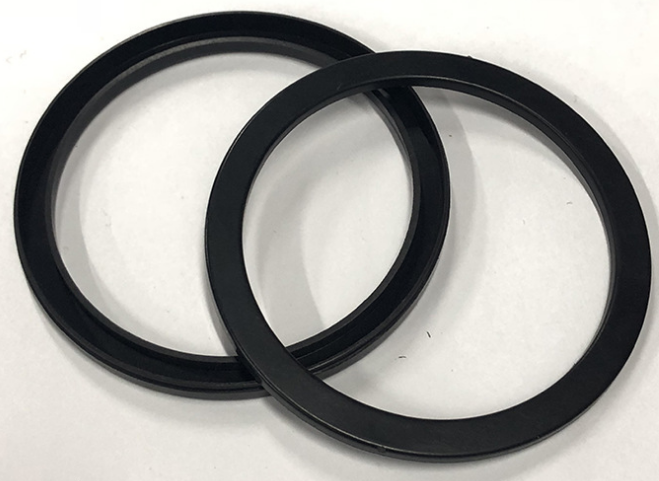

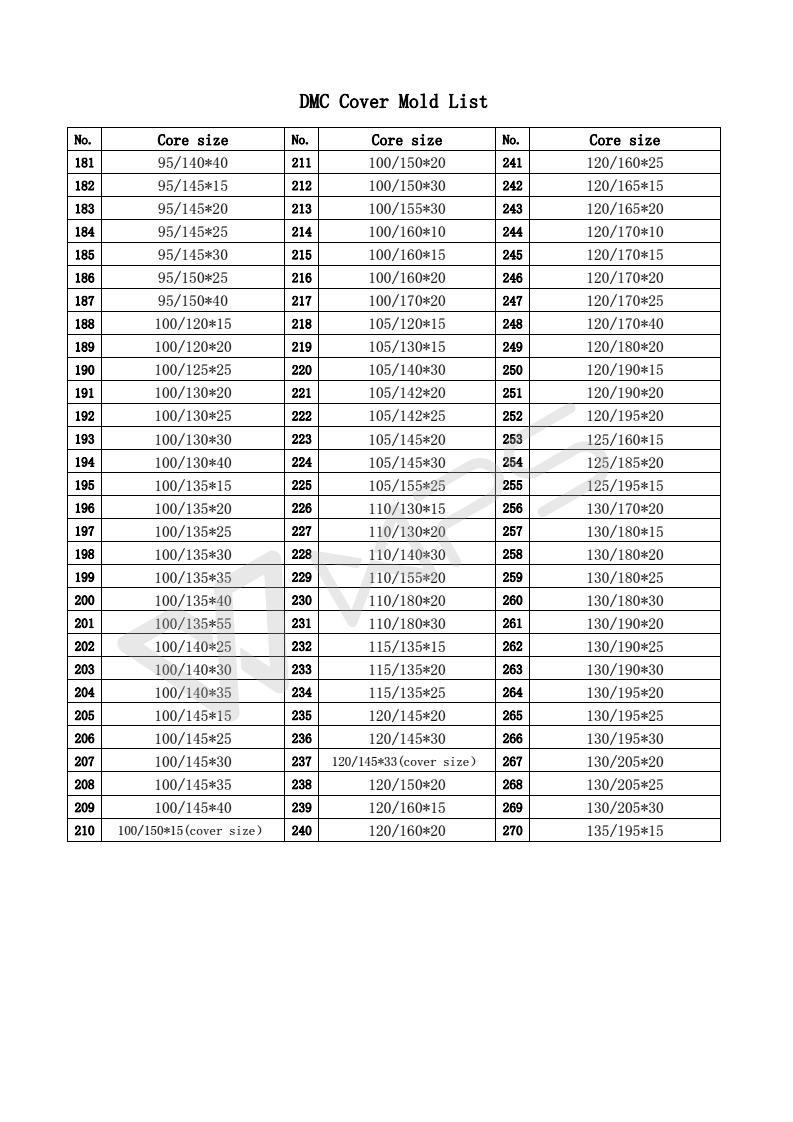

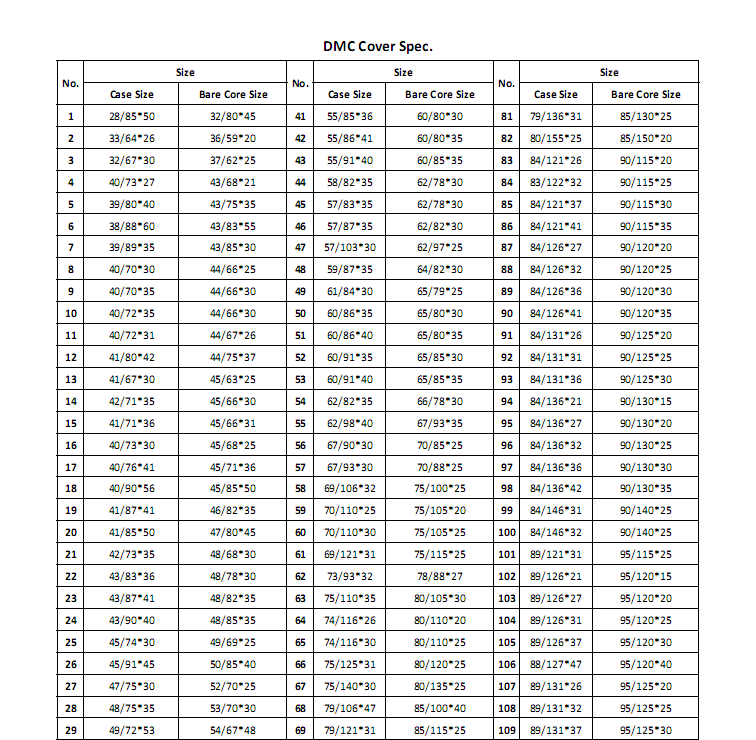

Nanocrystalline core for current transformer(Plastic DMC Cases):
