Nanocrystalline Cut cores

Nanocrystalline Cut cores
Product name:Nanocrystalline Cut cores
Item:243
Details:
  Product description

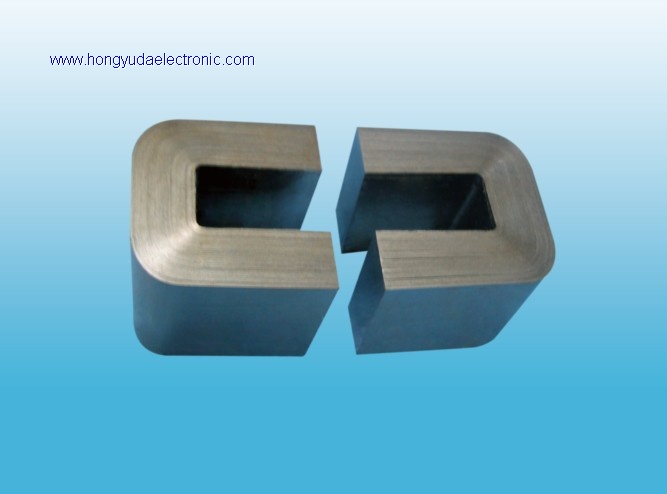

Nanocrystalline cut cores

Our Nanocrystalline cut cores are widely used in open-type current transformers, sensors, and power inductors and
other fields, as compared to conventional silicon steel core, which after cutting permeability silicon steel is nearly
10 times, the loss of silicon 1/3, the price is 50% permalloy, silicon steel is the ideal material substitution and
permalloy.

Applications

· Open-type current transformer
·sensor
· Power inductors and transformers
 · IF transformer
· Rail / new energy vehicles, auxiliary power

Features

After the cut-permeability up to 6000 or more - to increase an accuracy class transformers conventional open type
 ·Cutting loss (16KHz / 37mT) 1/2 is amorphous, silicon steel 1/6 - reduce the heat and improve the service life of
   the finished inductor
* Excellent linearity - 20% better than the same specifications silicon steel Linearity
· Excellent Excellent value for money - the price of permalloy 1/2

Nanocrystalline C-core product specification sheet:




Note: the production of circular, rectangular, and other shapes clamp-shaped cutting product
         according to customer requirement.

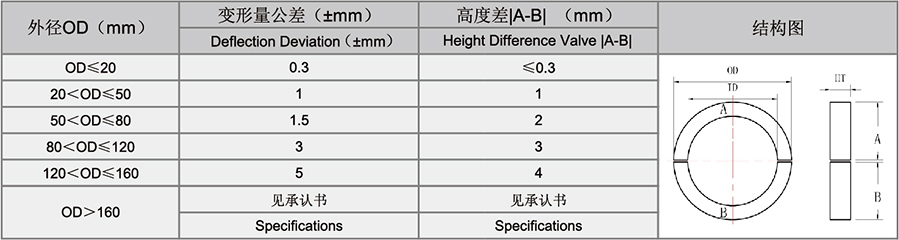

Nano toroidal cut core Finished dimensions deviation requirements as follows:

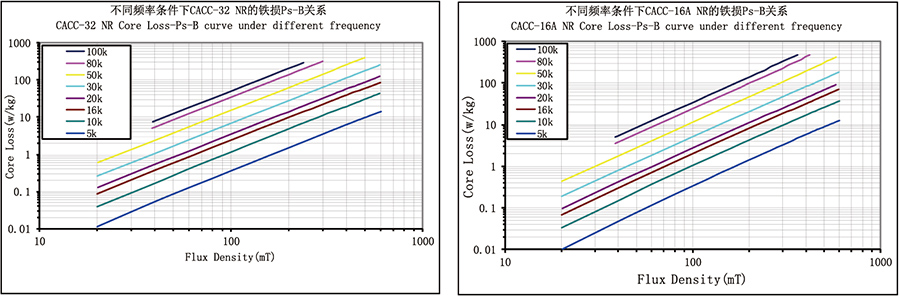

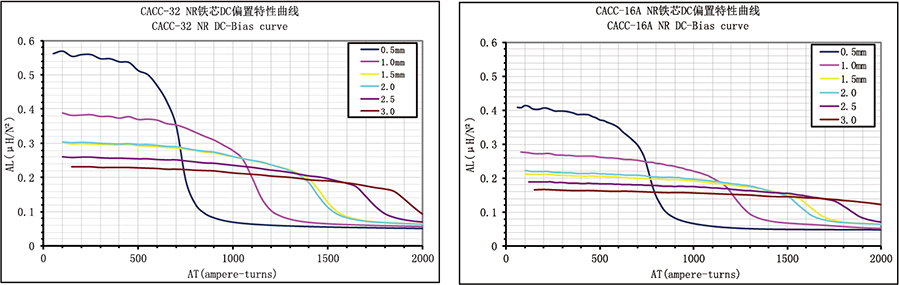

Performance curve:
