Amorphous cut core Nanocrystalline C Core

Amorphous cut core Nanocrystalline C Core
Product name:Amorphous cut core Nanocrystalline C Core
Item:229
Details:


Nanocrystalline cutting magnetic core




MOJCcg9HQHSzp7sOEtWmdg


Product description

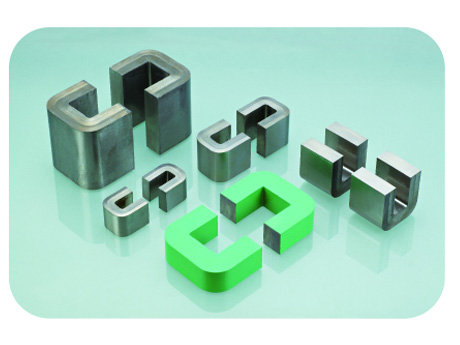

Nanocrystalline cut cores

Our Nanocrystalline cut cores are widely used in open-type current transformers, sensors, and power inductors and
other fields, as compared to conventional silicon steel core, which after cutting permeability silicon steel is nearly
10 times, the loss of silicon 1/3, the price is 50% permalloy, silicon steel is the ideal material substitution and
permalloy.

Applications

· Open-type current transformer
·sensor
· Power inductors and transformers


Features

After the cut-permeability up to 6000 or more - to increase an accuracy class transformers conventional open type
 ·Cutting loss (16KHz / 37mT) 1/2 is amorphous, silicon steel 1/6 - reduce the heat and improve the service life of
   the finished inductor
* Excellent linearity - 20% better than the same specifications silicon steel Linearity
· Excellent Excellent value for money - the price of permalloy 1/2

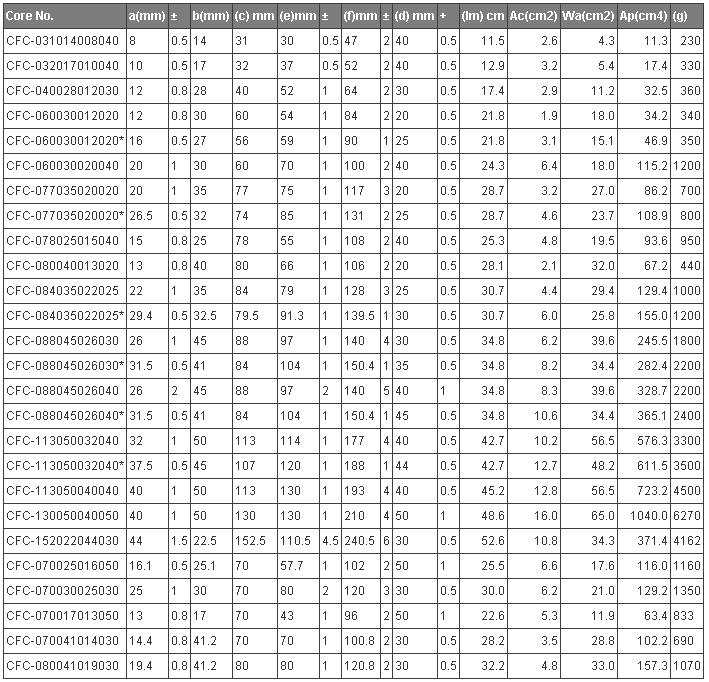

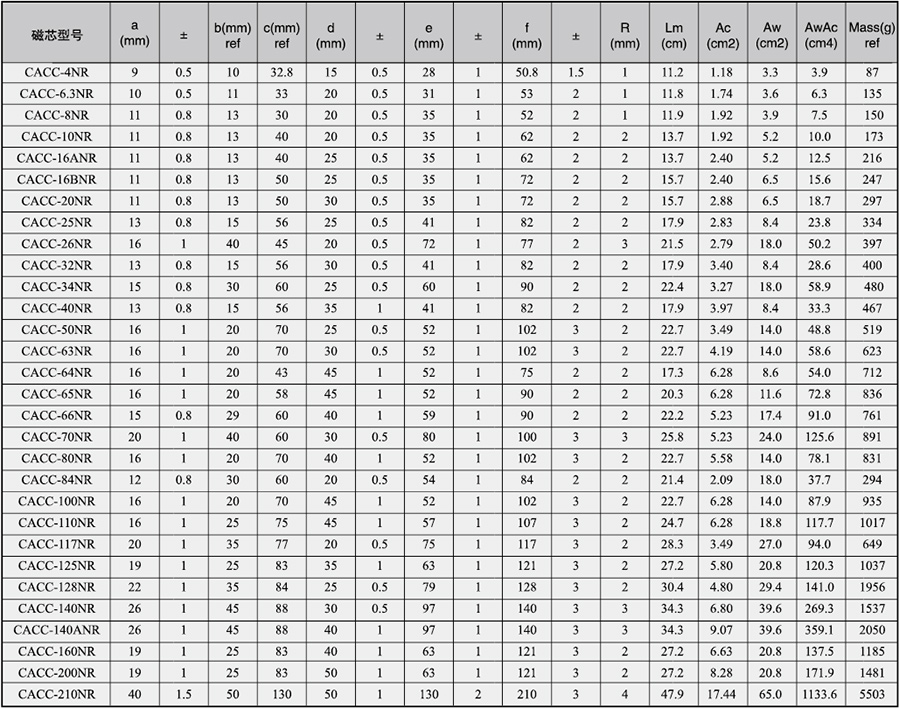

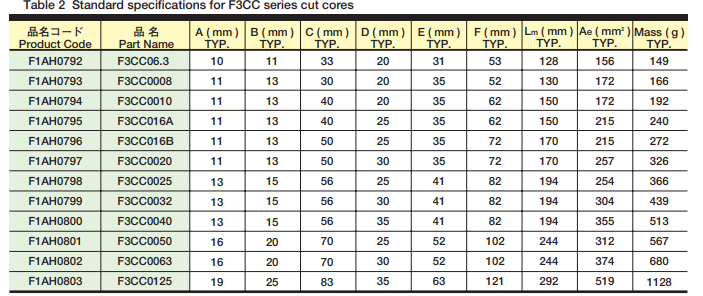

Nanocrystalline C-core product specification sheet:



Note: the production of circular, rectangular, and other shapes clamp-shaped cutting product according
to customer requirements.

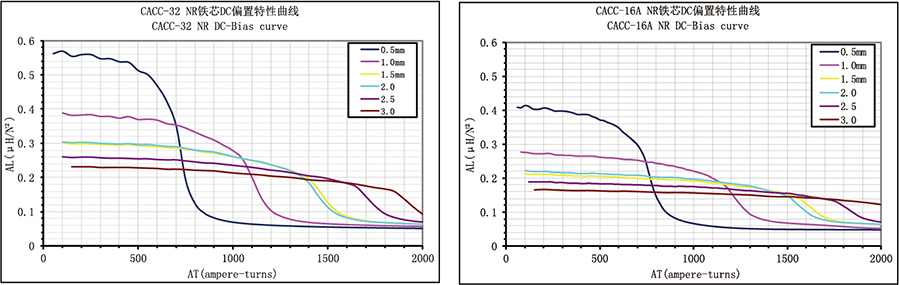

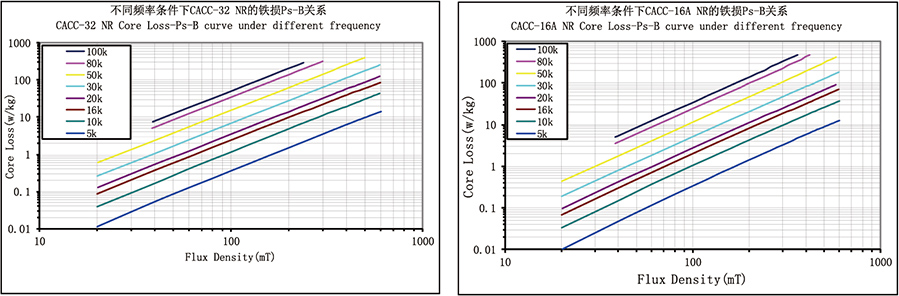

Performance curve:

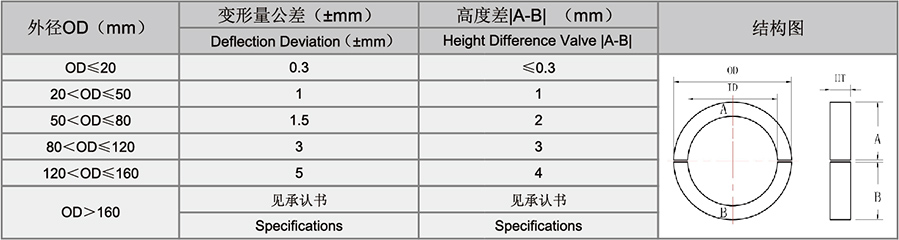

Nano toroidal split core Finished dimensions deviation requirements as follows:


Performance curve:
