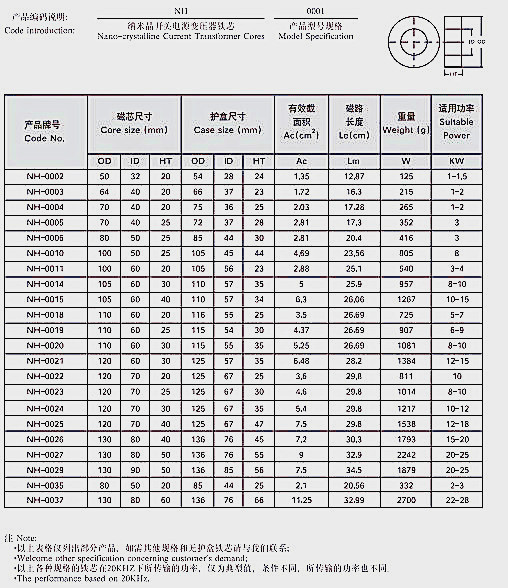

Nanocrystalline Switch High Frequency Transformer core NH series
Nanocrystalline Switch High Frequency Transformer core NH series
Product name：Nanocrystalline Switch High Frequency Transformer core NH series
Item：253
Details：
 Introduce:
 Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores
with low high frcqucncy loss, high Bs and low Br so that to achicvc bigger A B. Output filter and energy stored
inductancc required the characteristics of high Bs, low loss and constant permeability, in this case, we made
horizontal magnetic treatment on Nano-crystalline alloy to manufacture thetransformer cores with low Br
and constant permeability.



Application:

• Inverter Welding machine power supply

• X-ray, laser, communication power supply

• UPS and high frequency induction heating power supply

• Charging power supply

• Electrolytic and electroplate power supply

• Frcqucncy control of motor speed power supply



Characteristics:
• High Bs —Reducing volume and weight of the cores

• High permeability and low Coercive force —Higher cfHcicncy and less excitcd power of transformer

• Low Br (Br < 0.2T) ---Higher magnetic flux density and output power

• Low core loss —Lower temperature rising, higher efficiency of the transformer

• Excellent temperature stability —Keep stable working at -50'C-130'C for long time
