Nanocrystalline Switch Hi-Power Transformer core
Nanocrystalline Switch Hi-Power Transformer core
Product name：Nanocrystalline Switch Hi-Power Transformer core
Item：240
Details：

Introduce:
 Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer
cores with low high frcqucncy loss, high Bs and low Br so that to achicvc bigger A B. Output filter
and energy stored inductancc required the characteristics of high Bs, low loss and constant permeability,
in this case, we made horizontal magnetic treatment on Nano-crystalline alloy to manufacture
the transformer cores with low Br and constant permeability.

Application:

• Inverter Welding machine power supply

• X-ray, laser, communication power supply

• UPS and high frequency induction heating power supply

• Charging power supply

• Electrolytic and electroplate power supply

• Frcqucncy control of motor speed power supply



Characteristics

• High Bs —Reducing volume and weight of the cores

• High permeability and low Coercive force —Higher cfHcicncy and less excitcd power of transformer

• Low Br (Br < 0.2T) ---Higher magnetic flux density and output power

• Low core loss —Lower temperature rising, higher efficiency of the transformer

• Excellent temperature stability —Keep stable working at -50'C-130'C for long time

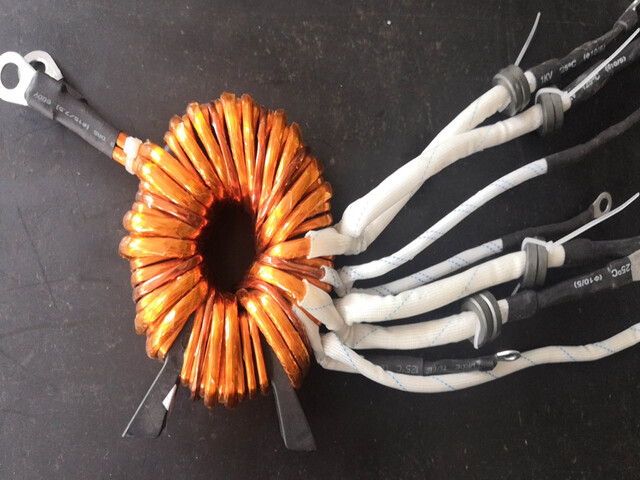

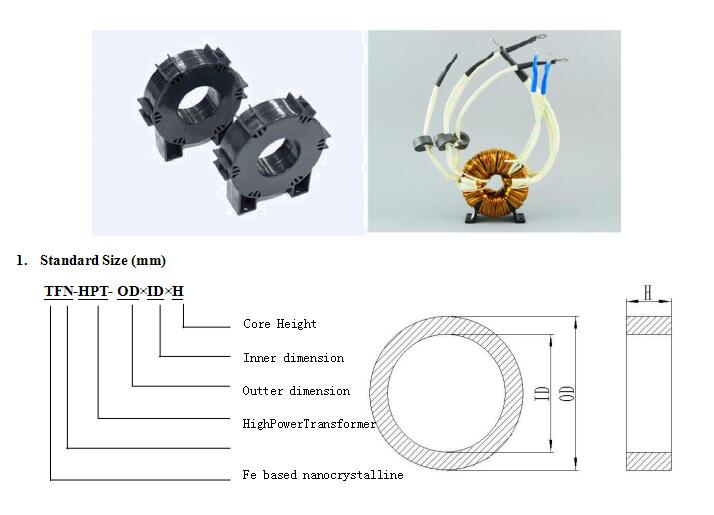

   The transformer uses a nanocrystalline toroidal core with a reinforced nylon or aluminum protective case outside, and is wound by a reasonable process. The
core has excellent characteristics such as high saturation magnetic induction, high permeability, high Curie temperature, low remanence, core loss, and low magnetostriction coefficient. The transformer has the characteristics of compact structure, low leakage inductance, high mechanical strength and convenient
installation.



Applicable scope:

  High frequency inverter welding machine and high-power inverter power supply.



Key words : Nano-crystalline Switch Hi-Power Transformer , nano-crystalline core, Transformer, Transformer core
