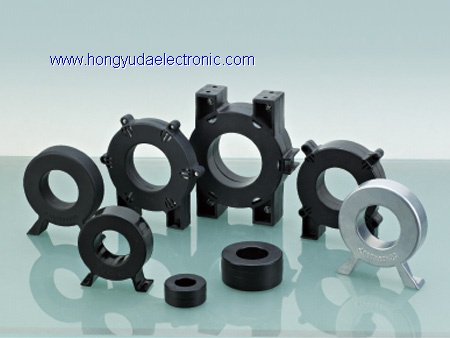

Nanocrystalline Welding Inverter Core High frequency transformer Core

Nanocrystalline Welding Inverter Core High frequency transformer Core
Product name:Nanocrystalline Welding Inverter Core High frequency transformer Core
Item:260
Details:
 Introduce:
 Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores with
low high frcqucncy loss, high Bs and low Br so that to achicvc bigger A B. Output filter and energy stored inductance
required the characteristics of high Bs, low loss and constant  permeability,in this case, we made horizontal magnetic
treatment on Nano-crystalline alloy to manufacture the transformer cores with low Br and constant permeability.



Characteristics:

• High Bs —Reducing volume and weight of the cores

• High permeability and low Coercive force —Higher cfHcicncy and less excitcd power of transformer

• Low Br (Br < 0.2T) ---Higher magnetic flux density and output power

• Low core loss —Lower temperature rising, higher efficiency of the transformer

• Excellent temperature stability —Keep stable working at -50'C-130'C for long time

Application
:

• Inverter Welding machine power supply

• X-ray, laser, communication power supply

• UPS and high frequency induction heating power supply

• Charging power supply

• Electrolytic and electroplate power supply

• Frcqucncy control of motor speed power supply

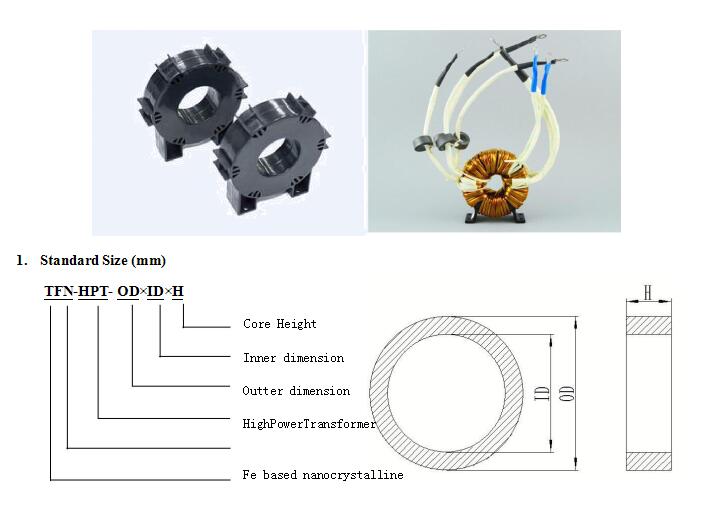

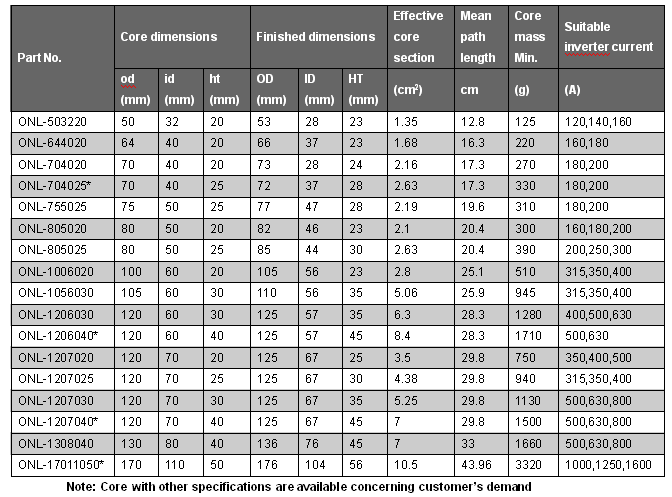

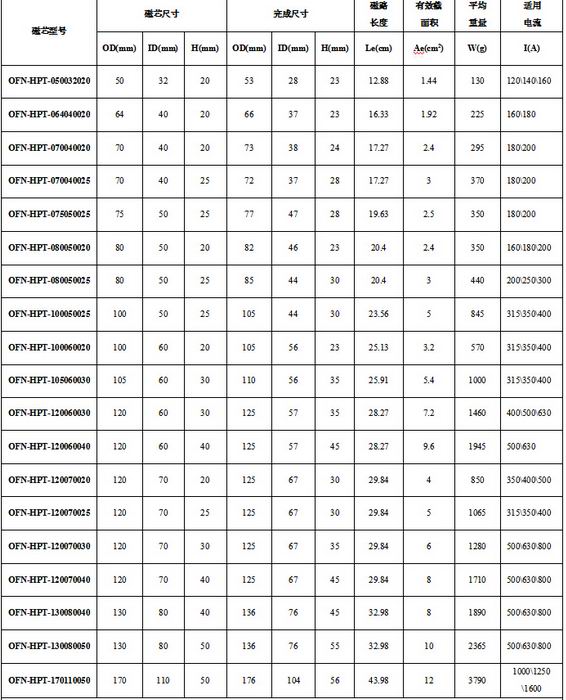

Product Specifications:
