Iron Current Transformers Core nanocrystaline cores

Iron Current Transformers Core nanocrystaline cores
Product name:Iron Current Transformers Core nanocrystaline cores
Item:226
Details:
 Current Transformers Core and RCCB Core

Shape: Ring core and Rectangle core

Nanocrystalline Core Applied As:

1, Solid Current Transformers Cores;

2, Split Current Transformer Cores;/

3, Residual Current Circuit Breaker ( RCCB) Cores;



Current Transformer Core





Applications:

1Solid Current Transformer Cores

1Split Current Transformer Cores

1Residual Current Circuit Breaker(RCCB) Cores



Characteristics:

1High permeability

1Low core lossLow temperature rise

1Good Temperature stability



Properties:

Saturate induction

1.25T

Hardness Hv

880kg/mm2

Curie Temperature

560°C

Density

7.20g/cm3

Crystallization Temperature

510°C

Resistivity

80mW-cm

Saturate magnetostriction

2x10-6

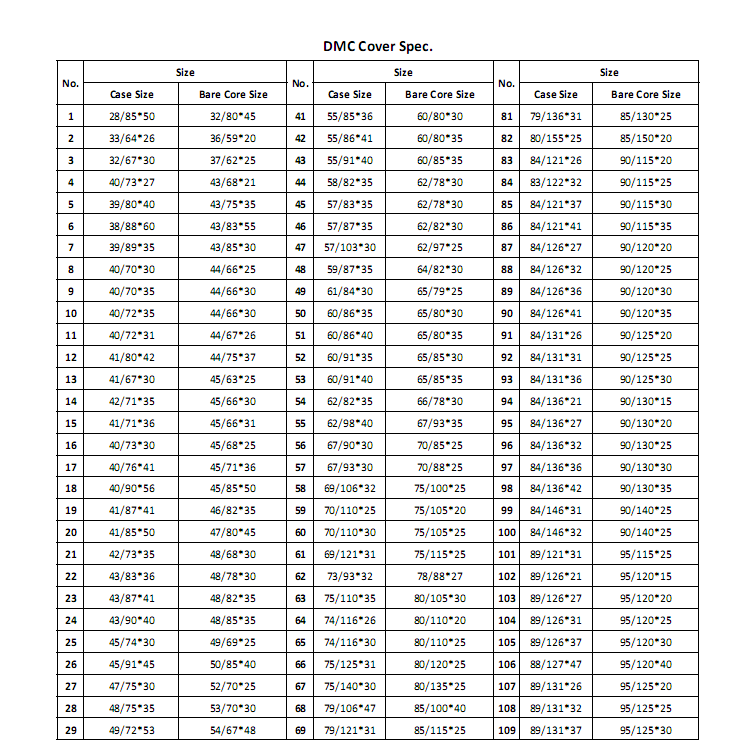

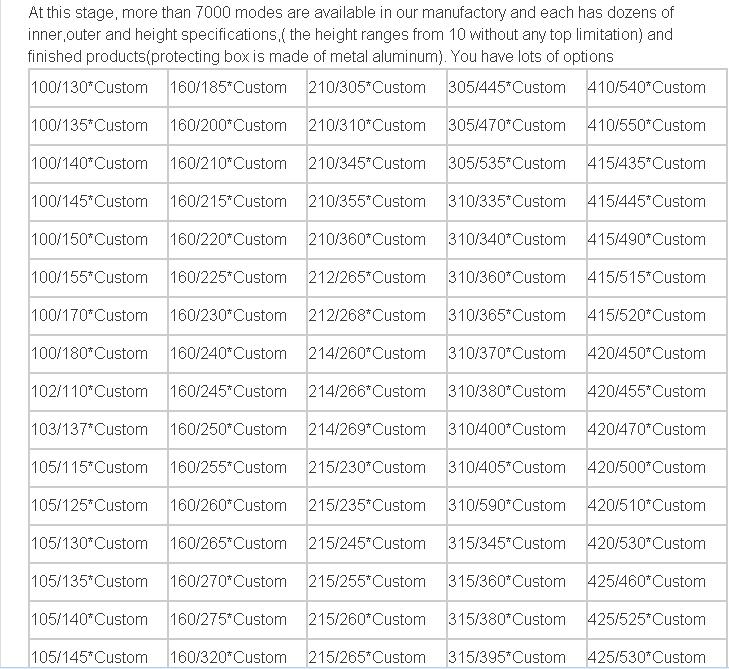

Ring Core Dimension(With AL case,Plastic DMC case or Stainless steel case):


* Cores with other specifications can be provided concerning to customer demand.

Class of Accuracy:

 0.5, 0.5S, 0.2, 0.2S, 0.1, 0.05, 0.02, 0.01

Rated Voltage:

0.5, 10, 15, 20, 35, 60, 110, 220, 330, 500kV
