Products

amorphous E-core

amorphous E-core
Product name:amorphous E-core
Item:223
Details:

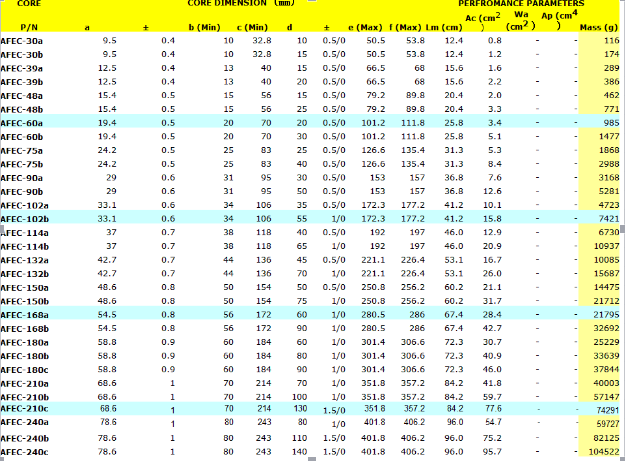

 Amorphous E-Core AFEC Series

Applications:

u  Output filter or inductor cores in high frequency large power,solar inverter trasformer core;

u   Transformer cores in switch mode power supplies

Characteristics:

u       High saturate inductionReducing core volume

u       Rectangular formEasy to mount coils

u       With air gapExcellent anti-bias current ability

u       Low core lossLow temperature rise

u       Good stabilityCan work130oC

Properties:

Saturate induction  1.56T  Hardness Hv  960kg/mm2
Curie Temperature  410°C  Density  7.18g/cm3
Crystallization Temperature  550°C  Resistivity  130mW-cm
Saturate magnetostriction  27′10-6


Cores with other specifications can be provided concerning to customer’s demand.
