Amorphous C core

Amorphous C core
Product name:Amorphous C core
Item:18
Details:
   Application :

1.Widely used in the high frequency power switch power supply output filter reactor and some UPS(uninterrupted power supply) of the main transformer.

2.Solar inverter transformer core.



Properties:

Manufacture by Fe-base amorphous ribbon, with high saturation magnetic induction strength, high magnetic permeability, low loss (1/5-1/10 compared with silicon steel), low coercive force and good temperature stability.



Series and specifications:

CFC series, CFCC series, CFB amorphous stick series





Symbol in the table:

a-core build  b-window width  c-window length   d-core height   e-core width   f-core length   g-weight of core

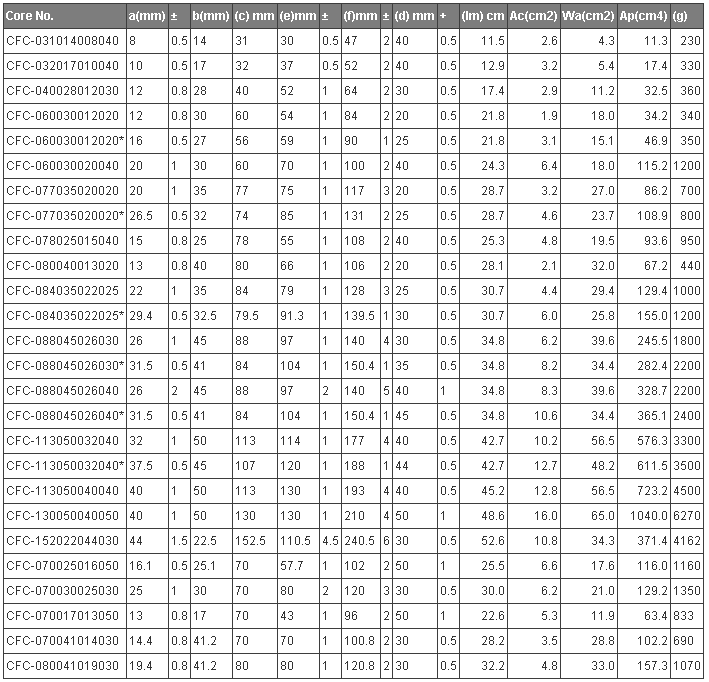

CFC series:

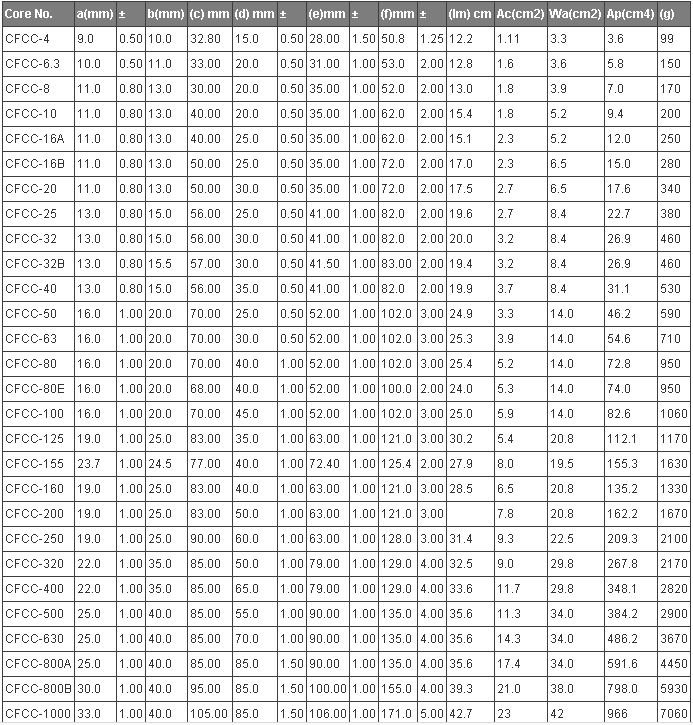

CFCC-Series:
