Product Performance:
• High saturate induction—Reducing core volume
• Rectangular form_Easy to mount coils
• With air gap—Excellent anti-bias current ability
• Low core loss一Low temperature rise
• Excellent stability~Keep stable working from -55℃to 130℃
Application Area:
• Amorphous reactor core for PV inverter
• Output filter or inductor in high frequency large power supplies
• Mid and high frequency switch power transformer
• Major transformers in UPS power supply
Product Specifications:

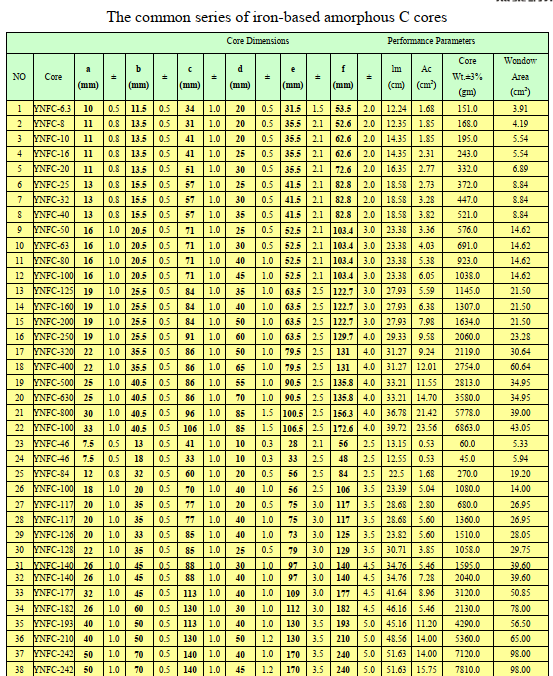

Nanocrystalline Cut cores list:
Note:Welcome other specification and Customer required dimension is available
Soft magnetic component
