Spit core current transformer

Spit core current transformer

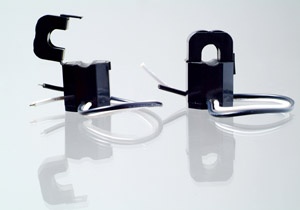

Product name:Spit core current transformer
Item:05
Details:

Application Features

※ 1-200A Split core current transformer

※ 1-200A AC energy meter

※ Meet the standard IEC62053 and ANSI C12.20
※ High accuracy class ,wide linearity
※ Superitor stability ,separate the external magneitc field interference
※ Measure the current directly
※ It is with the diode to save people's life
※ Meet the ROHS requirement

Specifications



P/N:

Rated current

 Rated load resistance

Current ratio

 5A linearity error

50A linearity error

Max current linearity error

Accuracy class

CT301

2.5~75A

100Ω

3000:1

-1.47%

-0.92%

-1.28%

2%

CT302

10~200A

20Ω

2000:1

-2.86%

-0.92%

-0.05%

2%

Other specifications can be supplied according to your requirement

Product Drawings
Size





Part No

A
(±0.2)

B
(±0.1)

C
(±0.1)

D
(±1)

E
(±10)

F
(±0.3)

G
(±0.2)

H
(±0.2)

CT301

10.00

23.80

41.50

14.50

27.00







0.394"

0.937"

1.634"

0.571"

1.063"







CT302

24.60

45.00

65.00

21.60

33.40







0.969"

1.772"

2.559"

0.850"

1.315"









Curve
