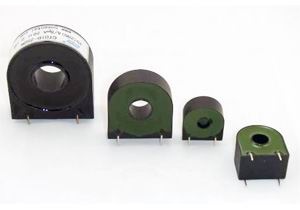

Pin-type anti-DC current transformer |
|
| Product name：Pin-type anti-DC current transformer |
| Item：06 |
| Details： |
| Application |
Features |
|
※ Electronic energy meter ,Power meter
※ Accurate measuring meter for AC at the existing DC components
|
※ Meet the standard of IEC62053 and ANSI12.20
※ High linearity with DC immunity characteristics
※ Steady phase shift
※ Perfect insulation and excellent immunity of humidity ans shock
※ Various choices for different configurations
※ Meet ROHS requirements |
|
Specifications
|
|
|
P/N
|
Rated current
|
Rated load resistance
|
Ratio current
|
5A Linearity error
|
20A linearity error
|
Max current linearity error
|
Accuracy class
|
|
PCT701
|
5~60A
|
10Ω
|
2500：1
|
-0.15%
|
-0.08%
|
0.05%
|
0.2%
|
|
PCT702
|
5~80A
|
10Ω
|
2500：1
|
-0.09%
|
-0.05%
|
-0.01%
|
0.1%
|
|
PCT703
|
5~100A
|
10Ω
|
2500：1
|
-0.06%
|
-0.02%
|
0.00%
|
0.1%
|
|
PCT704
|
5~60A
|
10Ω
|
2000：1
|
-0.16%
|
-0.07%
|
0.06%
|
0.2%
|
|
PCT901
|
10~150A
|
10Ω
|
2500：1
|
-0.06%
|
-0.01%
|
0.01%
|
0.1%
|
|
Other specifications can be supplied according to your requirement
|
|
|
|
|
Product Drawings
|
 |
|
Size
|
|
|
P/N
|
A
(min)
|
B
(max)
|
C
(max)
|
D
(max)
|
E
(±0.2)
|
F
(±0.3)
|
G
(±0.2)
|
H
(±0.2)
|
|
PCT701
|
7.00
|
23.40
|
11.00
|
24.60
|
15.00
|
5.00
|
19.00
|
10.00
|
|
0.276"
|
0.921"
|
0.433"
|
0.969"
|
0.591"
|
0.197"
|
0.748"
|
0.394"
|
|
PCT702
|
8.70
|
26.40
|
17.00
|
28.40
|
15.00
|
5.00
|
19.00
|
16.00
|
|
0.343"
|
1.039"
|
0.669"
|
1.118"
|
0.591"
|
0.197"
|
0.748"
|
0.630"
|
|
PCT703
|
12.80
|
37.20
|
14.00
|
38.60
|
25.00
|
5.00
|
32.50
|
13.00
|
|
0.504"
|
1.465"
|
0.551"
|
1.520"
|
0.984"
|
0.197"
|
1.280"
|
0.512"
|
|
PCT704
|
8.00
|
24.20
|
11.80
|
25.40
|
15.20
|
4.60
|
|
|
|
0.315"
|
0.953"
|
0.465"
|
1.000"
|
0.598"
|
0.181"
|
|
|
|
PCT901
|
18.50
|
50.00
|
20.00
|
55.00
|
29.40
|
5.00
|
37.40
|
19.00
|
|
0.728"
|
1.969"
|
0.787"
|
2.165"
|
1.157"
|
0.197"
|
1.472"
|
0.748"
|
|
|
Curve
|
 |
|
 |
