O Model current transformer

O Model current transformer

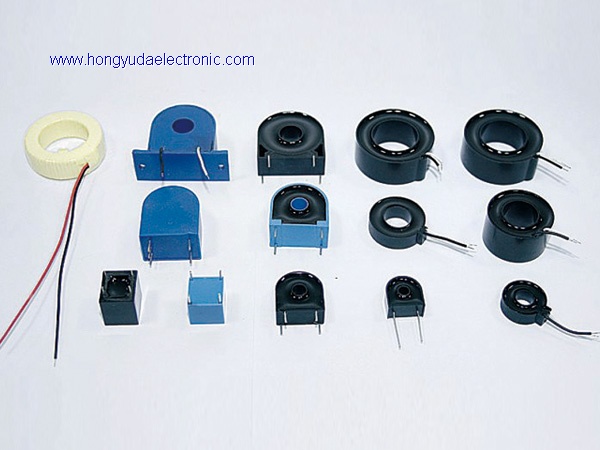

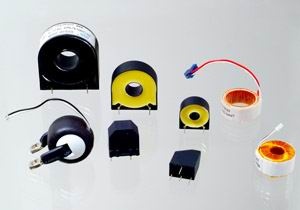

Product name:O Model current transformer
Item:02
Details:

Application Features
※ Energy meter ,power transducer ,precision power meter and energy monitoring devices.

※ Over current protection circuit of moter and other electrical appliances.

※ Meet the standard of IEC62053 and ANSI12.20
※ High linearity with DC immunity characteristics
※ Outstanding stability ,separate the external magnetic field interference
※ Operation Frequency:20--400Hz
※ High potential voltage 4000V/min
※ Meet ROHS requirements

Specifications





Part No

Rated current

Rated resistor

Ratio

5A Linearity error

20A linearity error

Max current linearity error

Accuracy class

PCT801

3A~50A

100Ω

2000:1

-0.25%

0.34%

0.38%

0.5

PCT802

3A~50A

10Ω

2000:1

-0.06%

-0.04%

-0.07%

0.1

PCT831

3A~50A

10Ω

2000:1

0.05%

0.03%

0.01%

0.1

PCT832

3A~100A

10Ω

2000:1

-0.01%

-0.03%

-0.08%

0.1

PCT842

5A~150A

1000:1

-0.49%

-0.03%

-0.50%

0.5



Product Drawings
Size





Part No

A
(min)

B
(max)

C
(max)

D
(±5)

E
(±1)

F
(±0.3)

G
(±0.2)

H
(±0.2)

PCT801

28.00

45.00

17.20

125.00

4.00







1.10"

1.77"

0.68"

4.92"

0.16"







PCT802

10.00

37.00

25.00

80.00

0.16"







0.39"

1.46"

0.98"

3.15"

0.16"







PCT831

11.50

26.50

17.50

85.50

0.16"







0.45

1.04

0.69

3.37

0.16"







PCT832

11.70

32.00

16.00

180.00

0.16"







0.46

1.26

0.63

7.09

0.16"







PCT842

6.00

23.50

18.50

160.00

0.16"







0.24

0.93

0.73

6.30

0.16"







(unit : mm/inch)



Curve
