CT For Ground Fault Circuit Interrupters(GFCI)
CT For Ground Fault Circuit Interrupters(GFCI)

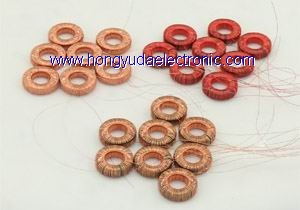

Product name：CT For Ground Fault Circuit Interrupters(GFCI)
Item：08
Details：

Application Features
GFCI(Ground Fault Circuit Interrupters)
※ Accord with UL943 standard
※ Accurate output characteristic, avoid complex procedures of resistance
※ Excellent overload current characteristic, resist heavy current shock effectively
※ Range of work temperature: -35℃～80℃
※ Accord with RoHS require
Specifications



Name

Model

Core material

Coil spec.

Coil turns

Output characteristic

Test condition

Differential coil

ZCT101

Permalloy

Ф0.08mm

1000Ts

3.3~4.0mV

Iin=5mA R=1KΩ

Neutral coil

GNT101

Ferrite

Ф0.10mm

200Ts

≥60mH

1KHz  U=1.0V

Note: The above is the natural specification, some technical parameters could be updated according to your requirement.
Product Drawings

Size





Model

A
(min)

B
(max)

C
(max)

D
(±5.0)

E
(±0.2)

F
(±0.3)

G
(±0.2)

H
(±0.2)

ZCT101

6.70

14.30

4.30

60.00

　

　

　

　

0.264"

0.563"

0.169"

2.362"

　

　

　

　

GNT101

6.80

14.30

4.40

60.00

　

　

　

　

0.268"

0.563"

0.173"

2.362"

　

　

　

　



Curve
